DNA elasticity?

DNA elasticity governs the DNA conformational fluctations. Therefore, its study gives insight into the DNA dynamics and stiffness. There are two level at which elastic properties can be determined.

  1. Global Elastic Properties : It can be used for determining the stiffness of longer DNA segment.
  2. Local Elastic Properties: It can be used to study stiffness of a base-step (two adjacent nucleotides).

Global Elastic Properties

Global elastic properties include the motions governing bending, stretching and twisting motions of the DNA. To determine these properties, these motions for DNA segment need to be quantified from the simulations.

  1. Bending motion : In dnaMD, bending motion is decomposed into two orthogonal planes. These motions can be quantified using bending angles. Bending angle is calculated between the tangent of global helical axis present at the end of the DNA segment.
  2. Stretching motion : It is sum of the helical-rise calculated from 3DNA/do_x3dna package.
  3. Twisting motion : It is sum of the helical-twist calculated from 3DNA/do_x3dna package.

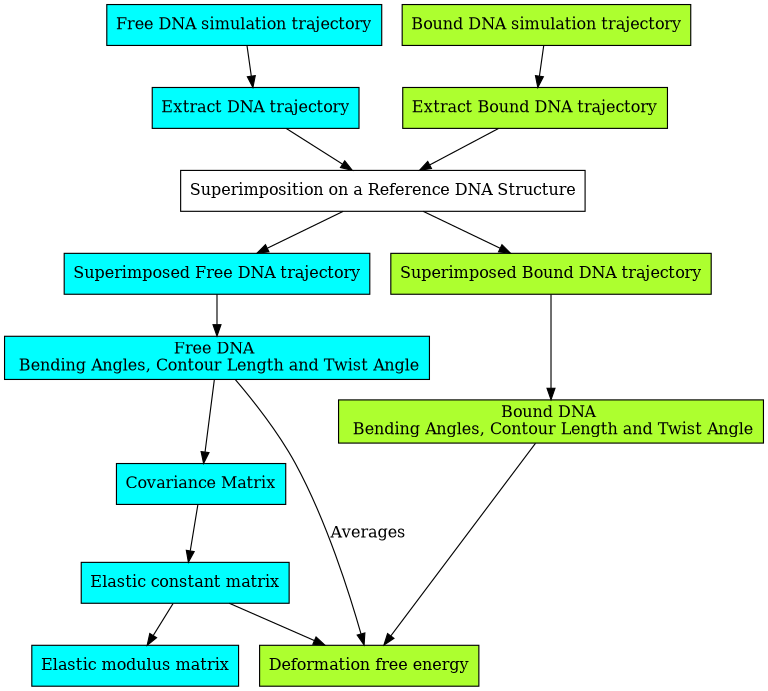

These quantities are calculated from the simulation trajectories, and subsequently, elastic matrix is calculated using covariance matrix.

digraph {
     size = "8,12"
     node [shape=box style=filled]

     a -> b-> c -> d -> e -> f -> g -> h
     i -> j -> c -> k -> l -> m
     e -> m [label = "Averages"]
     g -> m

     a [ fillcolor=cyan label = "Free DNA simulation trajectory"];
     b [ fillcolor=cyan label = "Extract DNA trajectory"];
     c [ fillcolor=none        label = "Superimposition on a Reference DNA Structure"];
     d [ fillcolor=cyan label = "Superimposed Free DNA trajectory"];
     e [ fillcolor=cyan label = "Free DNA \n Bending Angles, Contour Length and Twist Angle"];
     f [ fillcolor=cyan label = "Covariance Matrix"];
     g [ fillcolor=cyan label = "Elastic constant matrix"]
     h [ fillcolor=cyan label = "Elastic modulus matrix"];

     i [ fillcolor=greenyellow label = "Bound DNA simulation trajectory"];
     j [ fillcolor=greenyellow label = "Extract Bound DNA trajectory"];
     k [ fillcolor=greenyellow label = "Superimposed Bound DNA trajectory"];
     l [ fillcolor=greenyellow label = "Bound DNA \n Bending Angles, Contour Length and Twist Angle"];
     m [ fillcolor=greenyellow label = "Deformation free energy"];

}

Covariance matrix

\[\begin{split}\mathbf{C} = \begin{bmatrix} \langle (\theta^{x}_{i} - \theta^{x}_0) (\theta^{x}_{i} - \theta^{x}_0) \rangle & \langle (\theta^{x}_{i} - \theta^{x}_0) (\theta^{y}_{i} - \theta^{y}_0) \rangle & \langle (\theta^{x}_{i} - \theta^{x}_0) (L_i - L_0) \rangle & \langle (\theta^{x}_{i} - \theta^{x}_0) (\phi_i - \phi_0) \rangle \\ \langle (\theta^{x}_{i} - \theta^{x}_0) (\theta^{y}_{i} - \theta^{y}_0) \rangle & \langle (\theta^{y}_{i} - \theta^{y}_0) (\theta^{y}_{i} - \theta^{y}_0) \rangle & \langle (\theta^{y}_{i} - \theta^{y}_0) (L_i - L_0) \rangle & \langle (\theta^{y}_{i} - \theta^{y}_0) (\phi_i - \phi_0) \rangle \\ \langle (\theta^{x}_{i} - \theta^{x}_0) (L_i - L_0) \rangle & \langle (\theta^{y}_{i} - \theta^{y}_0) (L_i - L_0) \rangle & \langle (L_i - L_0) (L_i - L_0) \rangle & \langle (L_i - L_0) (\phi_i - \phi_0) \rangle \\ \langle (\theta^{x}_{i} - \theta^{x}_0) (\phi_i - \phi_0) \rangle & \langle (\theta^{y}_{i} - \theta^{y}_0) (\phi_i - \phi_0) \rangle & \langle (L_i - L_0) (\phi_i - \phi_0) \rangle & \langle (\phi_i - \phi_0) (\phi_i - \phi_0) \rangle \end{bmatrix}\end{split}\]
where:
  • \(\theta^{x}_{i}\) - Bending angle in first plane at \(i\) th frame
  • \(\theta^{x}_0\) - Average Bending angle in first plane from all frames
  • \(\theta^{y}_{i}\) - Bending angle in second plane at \(i\) th frame
  • \(\theta^{y}_0\) - Average Bending angle in second plane from all frames
  • \(L_i\) - Contour length (sum of helical-rise) at \(i\) th frame
  • \(L_0\) - Average Contour length from all frames
  • \(\phi_i\) - Twist angle (sum of helical-twist) at \(i\) th frame
  • \(\phi_0\) - Average twist angle from all frames

Elastic Constant Matrix

\[\begin{split}\text{Elastic matrix} = \mathbf{K} = k_BT\mathbf{C^{-1}} = \begin{bmatrix} K_{Bx} & K_{Bx,By} & K_{Bx,S} & K_{Bx,T} \\ K_{Bx,By} & K_{By} & K_{By,S} & K_{By,T} \\ K_{Bx,S} & K_{By,S} & K_{S} & K_{S,T} \\ K_{Bx,T} & K_{Bx,T} & K_{S,T} & K_{T} \end{bmatrix}\end{split}\]
where:
  • \(k_B\) - Boltzmann constant
  • \(T\) - Temperature
  • \(\mathbf{C}\) - Covariance matrix
  • \(Bx\) - Bending motion in first plane
  • \(By\) - Bending motion in second plane
  • \(S\) - Stretching motion
  • \(T\) - Twisting motion

Elastic Modulus Matrix

\[\begin{split}\text{modulus matrix} = \begin{bmatrix} M_{Bx} & M_{Bx,By} & M_{Bx,S} & M_{Bx,T} \\ M_{Bx,By} & M_{By} & M_{By,S} & M_{By,T} \\ M_{Bx,S} & M_{By,S} & M_{S} & M_{S,T} \\ M_{Bx,T} & M_{Bx,T} & M_{S,T} & M_{T} \end{bmatrix} = 4.1419464 \times \mathbf{K} \times L_0\end{split}\]
where:
  • \(M_{Bx}\) - Bending-1 stiffness in one plane
  • \(M_{By}\) - Bending-2 stiffness in another orthogonal plane
  • \(M_{S}\) - Stretch Modulus
  • \(M_{T}\) - Twist rigidity
  • \(M_{Bx,By}\) - Bending-1 and Bending-2 coupling
  • \(M_{By,S}\) - Bending-2 and stretching coupling
  • \(M_{S,T}\) - Stretching Twsiting coupling
  • \(M_{Bx,S}\) - Bending-1 Stretching coupling
  • \(M_{By,T}\) - Bending-2 Twisting coupling
  • \(M_{Bx,T}\) - Bending-1 Twisting coupling

Global Deformation Free Energy

Deformation free energy can be calculated using following equation with either elastic constant matrix or modulus matrix.

\[G = \frac{1}{2}\mathbf{xKx^T}\]

or

\[G = \frac{1}{2L_0}\mathbf{xMx^T}\]
where:
  • \(\mathbf{x} = \begin{bmatrix} (\theta^{x}_{i} - \theta^{x}_0) & (\theta^{y}_{i} - \theta^{y}_0) & (L_i - L_0) & (\phi_i - \phi_0) \end{bmatrix}\)

In dnaMD, deformation free energy is directly calculated from \(\mathbf{K}\) instead of \(\mathbf{M}\).

Local Elastic Properties

For a single base-step or few base-steps, local elastic properties can be calculated using either local base-step parameters or helical base-step parameters. These parameters quantify six degree of freedom along which a base-step can fluctuates. Therefore, elasticity along these six degrees of freedom and their coupling can be calculated under the harmonic approximation.

In case of Base-step parameters: Shift (\(Dx\)), Slide (\(Dy\)), Rise (\(Dz\)), Tilt (\(\tau\)), Roll (\(\rho\)) and Twist (\(\omega\)), following elastic matrix is calculated.

\[\begin{split}\mathbf{K}_{base-step} = \begin{bmatrix} K_{Dx} & K_{Dx,Dy} & K_{Dx,Dz} & K_{Dx,\tau} & K_{Dx,\rho} & K_{Dx,\omega} \\ K_{Dx,Dy} & K_{Dy} & K_{Dy,Dz} & K_{Dy,\tau} & K_{Dy,\rho} & K_{Dy,\omega} \\ K_{Dx,Dz} & K_{Dy,Dz} & K_{Dz} & K_{Dz,\tau} & K_{Dz,\rho} & K_{Dz,\omega} \\ K_{Dx,\tau} & K_{Dy,\tau} & K_{Dz,\tau} & K_{\tau} & K_{\tau, \rho} & K_{\tau,\omega} \\ K_{Dx,\rho} & K_{Dy,\rho} & K_{Dz,\rho} & K_{\tau, \rho} & K_{\rho} & K_{\rho,\omega} \\ K_{Dx,\omega} & K_{Dy,\omega} & K_{Dz,\omega} & K_{\tau, \omega} & K_{\rho, \omega} & K_{\omega} \\ \end{bmatrix}\end{split}\]

In case of Helical Base-step parameters: x-displacement (\(dx\)), y-displacement (\(dy\)), h-rise (\(h\)), inclination (\(\eta\)), tip (\(\theta\)) and twist (\(\Omega\)), following elastic matrix is calculated.

\[\begin{split}\mathbf{K}_{helical-base-step} = \begin{bmatrix} K_{dx} & K_{dx,dy} & K_{dx,h} & K_{dx,\eta} & K_{dx,\theta} & K_{dx,\Omega} \\ K_{dx,dy} & K_{dy} & K_{dy,h} & K_{dy,\eta} & K_{dy,\theta} & K_{dy,\Omega} \\ K_{dx,h} & K_{dy,h} & K_{h} & K_{h,\eta} & K_{h,\theta} & K_{h,\Omega} \\ K_{dx,\eta} & K_{dy,\eta} & K_{h,\eta} & K_{\eta} & K_{\eta, \theta} & K_{\eta,\Omega} \\ K_{dx,\theta} & K_{dy,\theta} & K_{h,\theta} & K_{\eta, \theta} & K_{\theta} & K_{\theta,\Omega} \\ K_{dx,\Omega} & K_{dy,\Omega} & K_{h,\Omega} & K_{\eta, \Omega} & K_{\theta, \Omega} & K_{\Omega} \\ \end{bmatrix}\end{split}\]

Local Deformation Energy

Using the elastic matrix, local deformation energy of base-steps can be calculated under the assumption that the energy landscape is harmonic. Therefore, deformation energy is given as follows.

\[G = \frac{1}{2}\mathbf{xKx^T}\]

In case of local base-steps parameters:

\[\mathbf{K} = \mathbf{K}_{base-step}\]
\[\mathbf{x} = \begin{bmatrix} (Dx_{i}-Dx_0) & (Dy_i - Dy_0) & (Dz_i - Dz_0) & (\tau_i - \tau_0) & (\rho_i - \rho_0) & (\omega_i - \omega_0) \end{bmatrix}\]

In case of local helical base-steps parameters:

\[\mathbf{K} = \mathbf{K}_{helical-base-step}\]
\[\mathbf{x} = \begin{bmatrix} (dx_{i}-dx_0) & (dy_i - dy_0) & (h_i - h_0) & (\eta_i - \eta_0) & (\theta_i - \theta_0) & (\Omega_i - \Omega_0) \end{bmatrix}\]
